"Gmailify" alternative: Gmail API Import fails in live workflow but works in manual test

Status: Open · Asked by Yan K on · 0 views

Yan K — Question ·
Hi! I am trying to build a workflow that imports emails from an Outlook Junk folder into Gmail, while preserving the original email structure (sender, subject, attachments, MIME formatting, etc.).
(This is as an alternative to the deprecated Gmailify. For inbox emails I use the global forward anyway, so only spam remains)

My workflow is:

1. Microsoft 365 - New Email in Folder

   * Folder: Junk Email
   * This successfully retrieves the email.

2. Microsoft 365 - Custom API Request

   * Method: GET
   * Endpoint: https://graph.microsoft.com/v1.0/me/messages/{message_id}/$value

   * This retrieves the raw MIME email content successfully.

3. Data Transformer - Base64 Encode

   * Input: the raw MIME response from Step 2
   * Output: Base64 encoded MIME string.

4. Gmail - Custom API Request

   * Method: POST
   * Endpoint: https://gmail.googleapis.com/gmail/v1/users/me/messages/import
   * Payload type: JSON
   * Body:

   {
     "labelIds": [
       "UNREAD",
       "SPAM"
     ],
     "raw": "{{Base64 output from Step 3}}"
   }


The issue:

When I use **"Save & Test Request"** manually inside the Gmail API step, the email is imported correctly. The sender, subject, body, and attachments are preserved.

However, when I run the **entire workflow live**, the Gmail API request fails with:

```
Error Code: 400

Error Message:
Expected a single 'From' header
```

It appears that the data being passed from Step 3 to Step 4 during a live execution is different from the data used during the manual test, even though the mapping is identical.

Could you please help identify why the live execution produces a different Gmail payload than the manual test?

Thank you.

Pabbly Support — Reply ·

Hello there,

Thanks for contacting us.

Could you please share the Workflow URL so that we can look into it and provide information accordingly?

Please be aware that to assist you effectively, we may need to access your Pabbly Connect account. If you're comfortable with this, please grant us permission by stating in your next email: "You have my permission to log into my Pabbly Connect account, and edit workflow {If required}. Here is the registered email address associated with it."

Thanks & Regards,

Adeel Akhtar
🌐 Pabbly.com

Pabbly Support — Reply ·

Hello Yan,

Thank you for sharing the workflow URL, we checked the workflow and the task history. The action is failing because there are multiple From Headers in the MIME message before encoding. Gmail allows only single form Header. Unfortunately, the response is received from Outlook only, which we tried to fix by adding 3 actions in your worklfow and without hampering the original steps. Here we tried to split the MIME version to remove the multiple From Header. If these 3 actions execute in your test then its possible else due to Gmail's policy it won't be possible.


That error is happening because the raw MIME you’re pulling from Outlook via Graph API $value isn’t in the format Gmail expects. Outlook often includes multiple From: headers (for example, one in the envelope and another in the message body), but Gmail’s import endpoint requires exactly one From: header.

Why does Outlook return multiple From: headers

  • The $value endpoint gives you the full MIME stream as stored in Exchange/Outlook.

  • Outlook sometimes duplicates headers (e.g., From: in the outer transport headers and again in the inner message).

  • Gmail’s API is strict: it rejects anything that doesn’t look like a valid RFC 2822/5322 message with a single From:.

Thanks & Regards,

Adeel Akhtar
🌐 Pabbly.com

Yan K — Reply ·

Thank you!

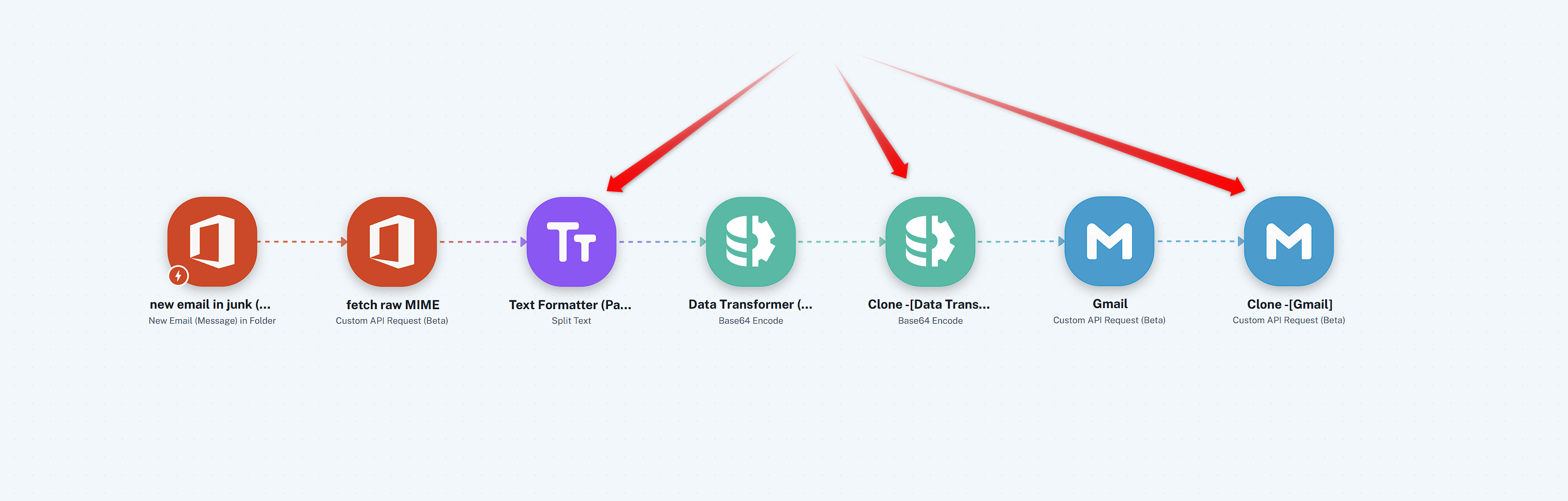

I see you've added a new text formatter step.
So, I've ran this new workflow, and again as before: manual test worked fine, but live test failed in the Gmail step with the 400 error "Expected a single 'From' header".
Apparently the text formatter didn't provide a solution...

Perhaps you have any other suggestions on how I could achieve the function I'm looking for?

Yan K — Reply ·

Just to clarify:

As I've mentioned unfortunately, the result is the same:

Manual "Save & Test Request" imports the email into Gmail successfully. The imported email is perfect, including the sender, subject, body, and attachments.

Live workflow execution still fails with:

Error Code: 400

Error Message: Expected a single 'From' header

The thing is - I'm not convinced that the issue is simply that Outlook returns multiple From: headers.

The main reason is that the same workflow succeeds during the manual test. If the MIME returned by Outlook were inherently invalid for Gmail, I would expect the manual test to fail as well.

In addition, during my own investigation I inspected the MIME returned by the Microsoft Graph $value endpoint and found only a single actual From: header. The other occurrences of the word "From" appear inside DKIM/ARC signature metadata (for example, h=From:Date:Subject...), which are part of signed header lists rather than additional message headers.

Because the manual test works while the live execution fails, it seems that something is behaving differently during the live execution path.

Could you please investigate what is different between the manual test and the live workflow execution on Pabbly's side? Since both executions use the same workflow and configuration, I would expect them to produce identical requests to Gmail.

If there is a limitation or known issue with processing raw MIME messages retrieved from the Microsoft Graph $value endpoint during live workflow execution, please let me know.

I'm happy to provide any additional information or allow further testing on my workflow if needed.

Thank you.

Pabbly Support — Reply ·

Hello Yan,

We fetched the last failed task in the Trigger response to check the manual execution, it seems the email has been deleted already, due to which is the second step failed to fetch the MIME type.

Can you fetch a new trigger response and also trigger the workflow again so that we can check the Trigger response in the workflow mapping and in the Task history as well?

Thanks & Regards,

Adeel Akhtar
🌐 Pabbly.com

Yan K — Reply ·

Sure! it's done.

Pabbly Support — Reply ·

Hello Yan,

Thank you for your prompt response.

Please do not delete this email, which you just added as the Trigger response. We will use this for testing, so fetching of the MIME type is required on step 2, for which the email should exist. Further, after initial review, I've escalated the issue to the Technical Team. We will get back to you as soon as we hear from the Team. It may take up to 48 hours to get back to you.

Thanks & Regards,

Adeel Akhtar
🌐 Pabbly.com
